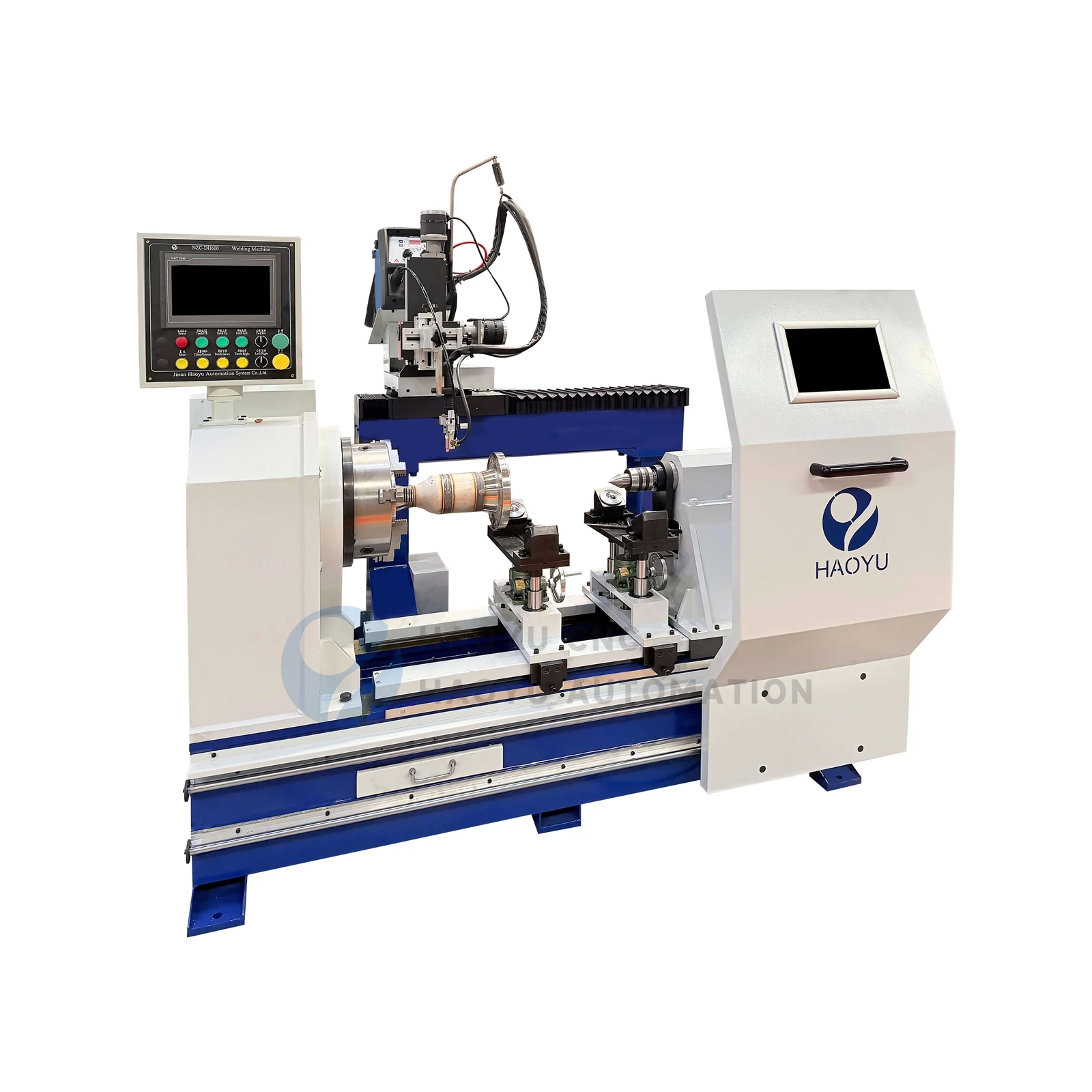

Automatic Nozzle Welding Equipment For Pressure Vessel Components

The Automatic Nozzle Welding Equipment for Pressure Vessel Components is designed for manufacturers that need a more consistent way to fabricate welded nozzle assemblies for pressure vessels and related process equipment.

The system is suitable for welding nozzle necks, flanges and other nozzle components according to the customer's actual workpiece design. It combines customized workholding with controlled welding movement to reduce repetitive manual operations and improve production consistency.

For manufacturers producing different nozzle sizes or repeated batches of similar components, the equipment can be configured around the actual workpiece dimensions, welding process and production requirements.

This welding system is intended for manufacturers and fabricators involved in the production of:

• Pressure vessels
• Chemical process equipment
• Petrochemical equipment
• Customized pressure vessel components

It is particularly useful for manufacturers that need to produce multiple nozzle assemblies with consistent welding quality and repeatable positioning.

If nozzle welding is currently performed mainly by manual torch operation, positioning and rotation, an automated system can help standardize these repeated production steps.

And  Producing pressure vessel nozzle assemblies manually can require repeated workpiece alignment, clamping and torch manipulation.

These operations become more demanding when production involves different nozzle dimensions or a large number of similar assemblies.

The automatic system is designed to help manufacturers address:

• Inconsistent manual welding movement
• Repeated workpiece positioning
• Difficult torch manipulation around circular joints
• Longer operator involvement in repetitive welding
• Variation between similar nozzle assemblies
• The need for customized tooling for different workpieces

The goal is not simply to automate the welding torch, but to create a repeatable welding process around the customer's actual nozzle components.

From Workpiece Loading to Finished Nozzle Assembly

A typical automated welding cycle can include:

Workpiece Loading → Alignment → Clamping → Welding Parameter Setup → Automatic Welding → Welding Completion

The nozzle components are first positioned in the dedicated fixture. After alignment and clamping, the welding system follows the programmed movement required for the joint.

After welding is completed, the finished assembly can be removed for inspection and subsequent fabrication or assembly operations.

The actual sequence may vary according to the nozzle design and welding procedure.

Pressure vessel nozzles are available in different diameters, lengths, flange dimensions, materials and joint configurations.

For this reason, the welding equipment can be configured according to the actual workpiece rather than using a fixed standard arrangement.

The engineering design can take into account:

• Nozzle diameter
• Nozzle length
• Flange dimensions
• Component thickness
• Workpiece weight
• Material
• Joint configuration
• Required welding position
• Welding process
• Production quantity

This approach allows the welding system to be adapted to both single-size production and a defined range of nozzle assemblies.

Automation can be particularly valuable when the same welding operation needs to be repeated many times.

Consistent Welding Movement

The programmed welding movement helps maintain a more consistent travel path during production.

Reduced Operator Intervention

Operators spend less time manually controlling the welding torch throughout repetitive welding cycles.

Repeatable Positioning

Customized fixtures help position the nozzle components consistently before welding.

Easier Batch Production

Once the appropriate welding procedure and machine settings have been established, the same production sequence can be repeated for similar workpieces.

Flexible Machine Configuration

The equipment can be designed around a customer's required nozzle size range instead of being limited to one universal workpiece specification.

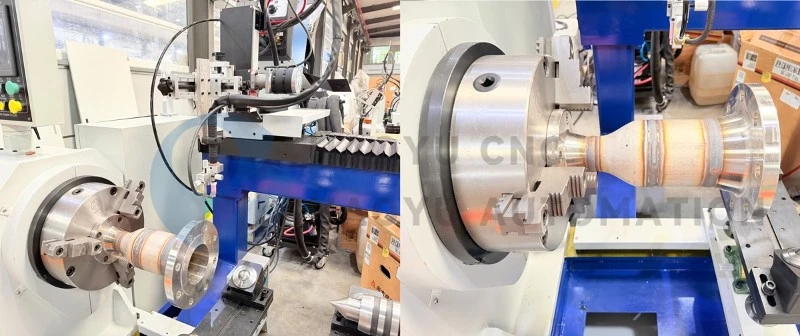

See the actual welding equipment in operation and observe how the system handles a pressure vessel nozzle assembly.

The welding video demonstrates the machine's workpiece positioning, welding movement and actual welding process.

This video shows our automatic nozzle welding equipment in operation for pressure vessel components. The system is designed for repeatable welding of nozzle assemblies and can be customized according to nozzle dimensions, flange size, material and production requirements.

FAQ for Automatic Nozzle Welding Equipment for Pressure Vessel Components





01.What is pressure vessel nozzle welding equipment used for?

It is used to automate welding operations during the fabrication of pressure vessel nozzle components and assemblies, including applications involving nozzle necks and flanges.

02.Can the equipment handle different nozzle sizes?

Yes. The fixture, clamping system and welding movement can be customized for a specified range of nozzle dimensions.

03.Can the equipment weld nozzle and flange assemblies?

Yes. The system can be configured for welding nozzle neck and flange components when the joint design is suitable for the selected welding configuration.

04.Can the machine be customized according to our drawing?

Yes. Workpiece drawings are recommended before machine design so that the fixture, welding movement and machine dimensions can be matched to the actual application.

05.Which welding process can be used?

The standard of sprockets can be determined according to different application requirements. The difference between metric sprockets and sprockets built to ANSI standards is that they use different units of measurement for chain specifications.

06.How much does automatic nozzle welding equipment cost?

The price depends on the workpiece dimensions, weight, welding process, automation level, fixture design and customization requirements. Because the equipment is configured according to the application, we provide a project-based quotation rather than a fixed standard price.

Send us your nozzle drawing and production requirements for a customized quotation.

If your company is producing pressure vessel nozzles manually or needs a more repeatable welding process for nozzle assemblies, our engineering team can evaluate your workpiece and production requirements.

Send us your drawing, material, dimensions and expected production quantity to discuss the appropriate welding equipment configuration.
